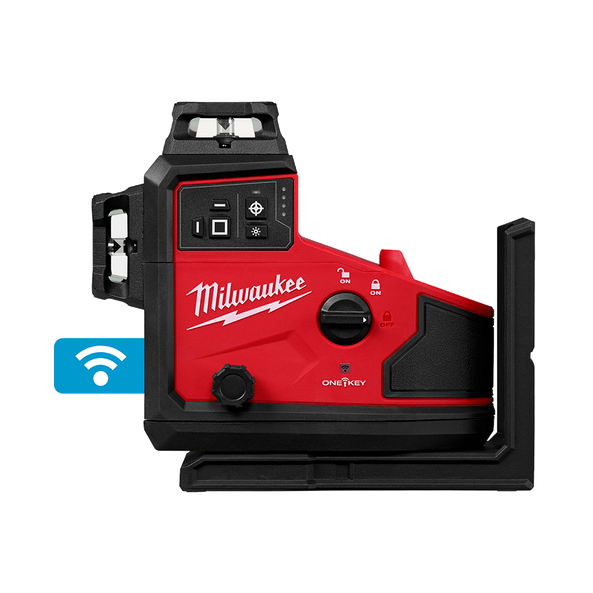

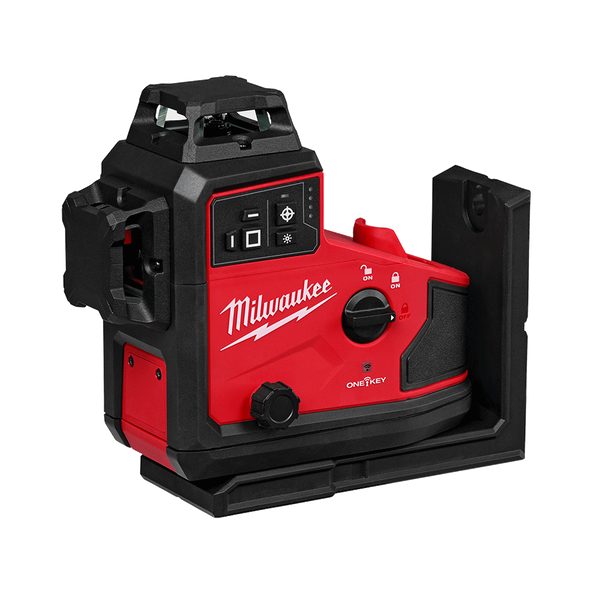

M12™ Auto Align 3 Plane Laser

M12AA3PL0C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

M12™ Auto Align 3 Plane Laser

M12AA3PL0C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Promotions

What's Included

Features

10+ hours of runtime in standard mode, 6+ hours of runtime in boosted mode, when used with an M12B4 4.0Ah battery
Auto alignment, pivots on point and integrated magnetic bracket for fast alignment and easy setup anywhere
70% brighter with brightness adjustment settings (standard, boost & off)

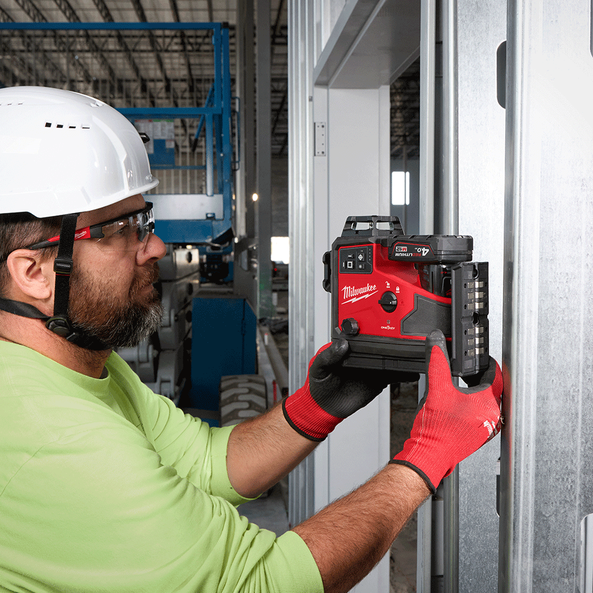

Amplified rare earth magnets – will not slide on steel studs
Up to 38m working range, 50m with detector
Water & dust resistant
1m drop rating
IP54 rated

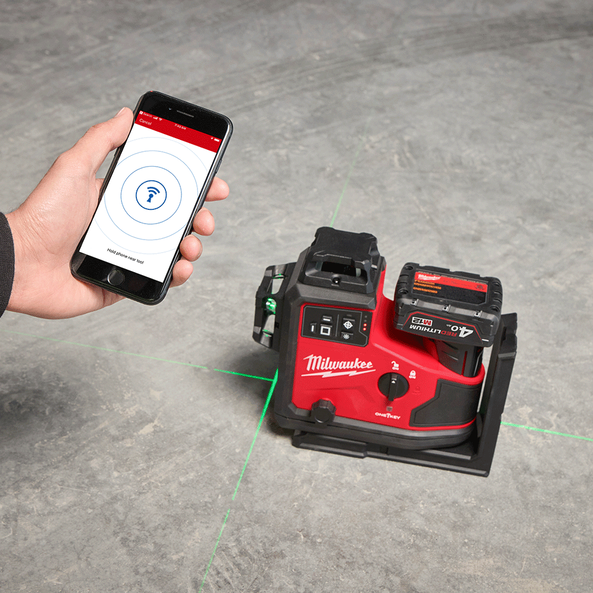

Integrated ONE-KEY™ for tool tracking and inventory management

Product Summary

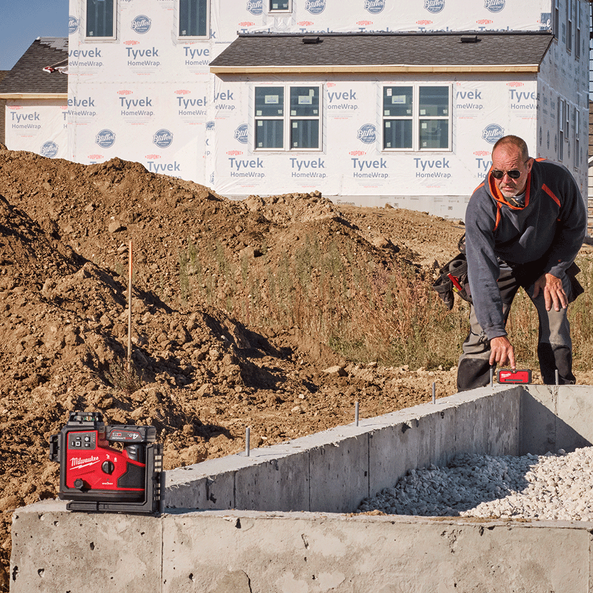

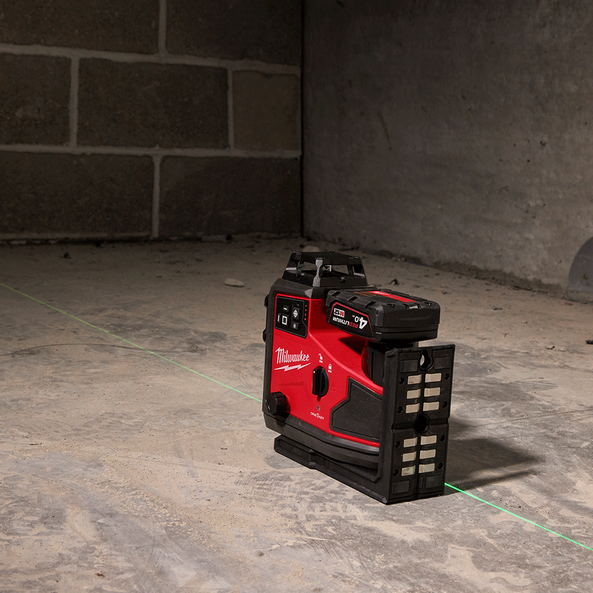

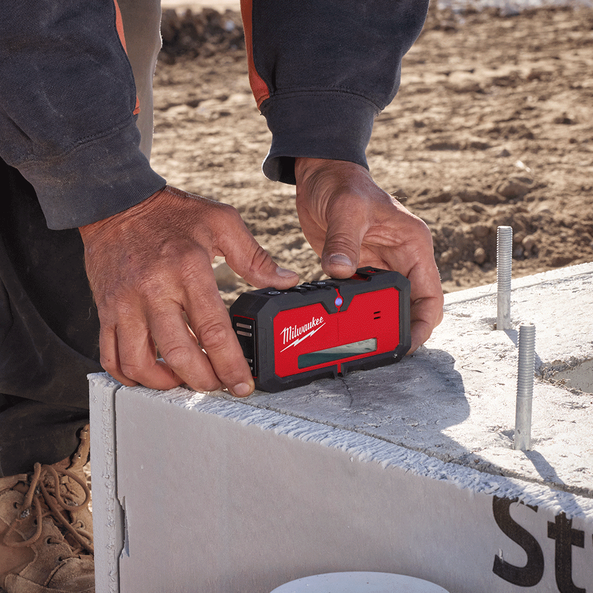

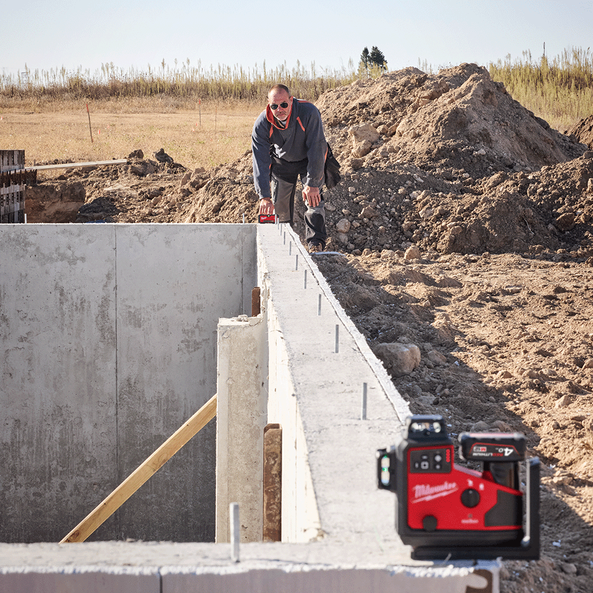

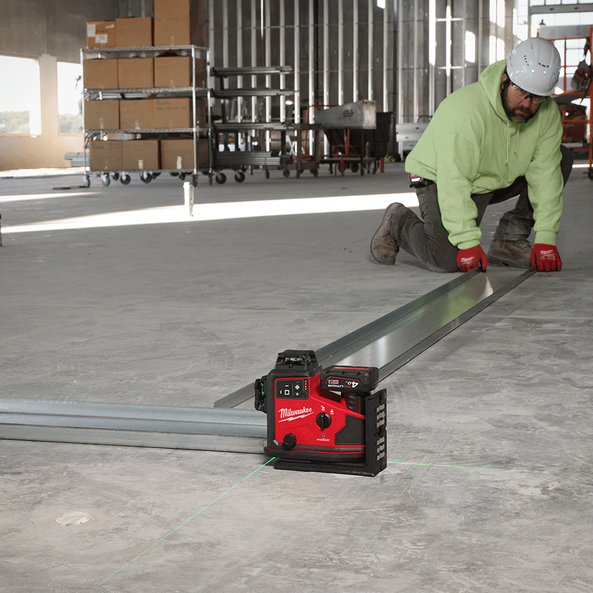

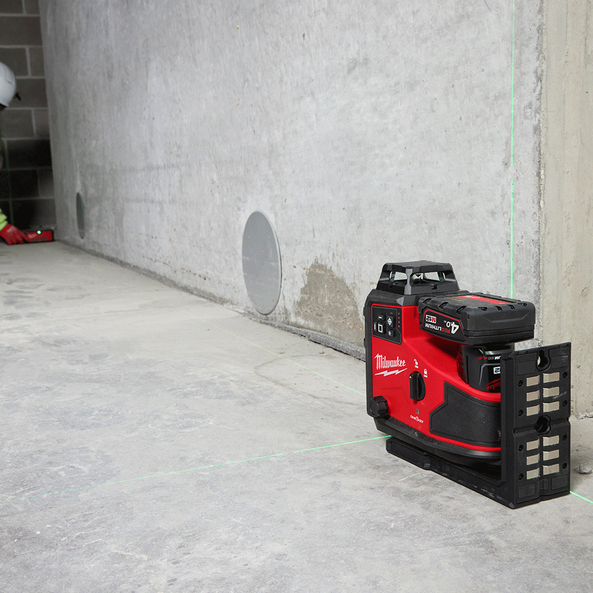

The M12™ Auto Align 3-Plane Laser provides automatic alignment & 70% brighter lines* for a faster, more accurate layout onsite. With the kitted receiver, you can automatically align your laser up to 38m, making the layout of long runs more efficient. In boosted mode, the M12™ Auto Align 3-Plane Laser is 70% brighter than our M12™ 3-Plane Laser, providing better visibility when it's needed. Powered by M12™ REDLITHIUM™ batteries, it delivers over 10 hours of runtime in standard mode, and 6 hours of runtime in boosted mode, when paired with an M12™ REDLITHIUM™ 4.0Ah Battery. You can adjust the brightness and put the laser to sleep from the receiver which is ideal for saving power during breaks. The three 360° planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. The integrated bracket features amplified rare earth magnets that provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. Built to withstand tough environments, the laser is water and dust-resistant, with an IP54 rating and a 1-meter drop rating, ensuring reliable performance in harsh conditions. Equipped with ONE-KEY™ technology, the tool can be tracked and managed, optimizing inventory and job site management.

Overview Specifications What's Included Resources Reviews

Specifications

Platform M12™ / ONE-KEY™
Voltage 12V
Dimensions 485 x 158 x 385 mm
Weight 5.84kg (Tool Only)
Warranty - Tool 3 Years
Locking Pendulum​ Yes
Self-Leveling​ +/- 4° Tilt
Working Range​ 38m
Range with Detector​ 50m
Thread Mount​ 1/4"-20, 5/8"-11
Automatic Alignment Range with Detector 5 m - 38 m
Automatic Alignment Accuracy +/- 3.2 mm at 38 m
Leveling Accuracy +/- 3.2 mm at 10 m
Brightness Modes Standard, Boost, Off

What's Included

M12™ Auto Align 3 Plane Laser
M12AA3PL
X1

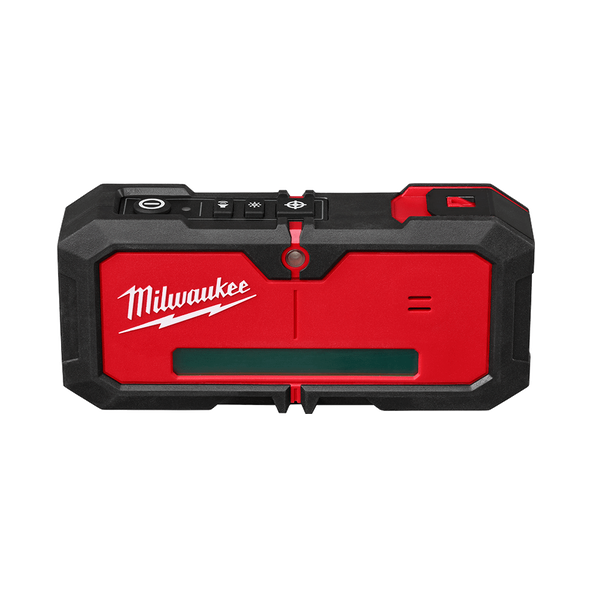

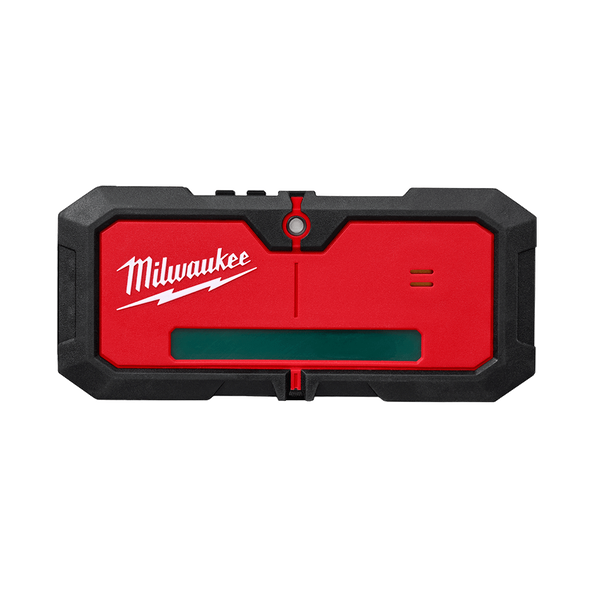

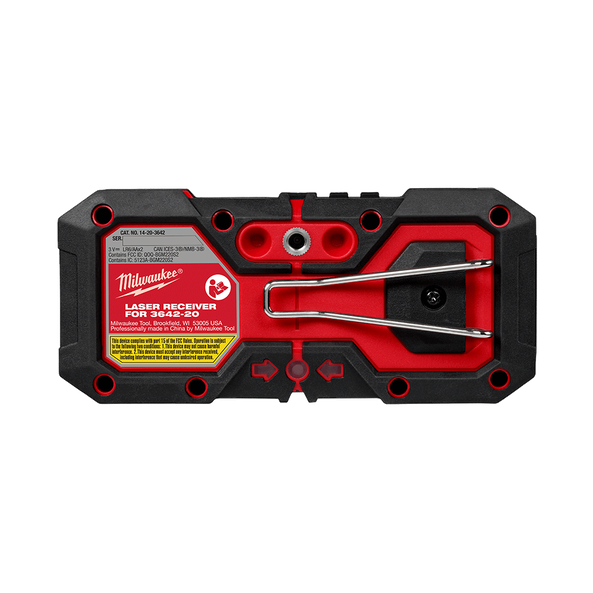

Laser Detector
14203642
X1
Detector Clamp
X1
Track Clip
X1
AA Batteries
X2
Carrying Case
X1
