M18™ FORCE LOGIC™ 60kN Latched Inline Utility Crimper (Tool Only)

M18ONEHCCT600C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 4ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
NEW
NEW

M18™ FORCE LOGIC™ 60kN Latched Inline Utility Crimper (Tool Only)

M18ONEHCCT600C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 4ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Promotions

What's Included

Features

Complete crimps in less than 5 seconds with 60kN of force.
Easy die alignment and linear movement ensure most uniform crimp results.
Universal die reception is compatible with most common 6 Ton (60kN) U-dies on the market.

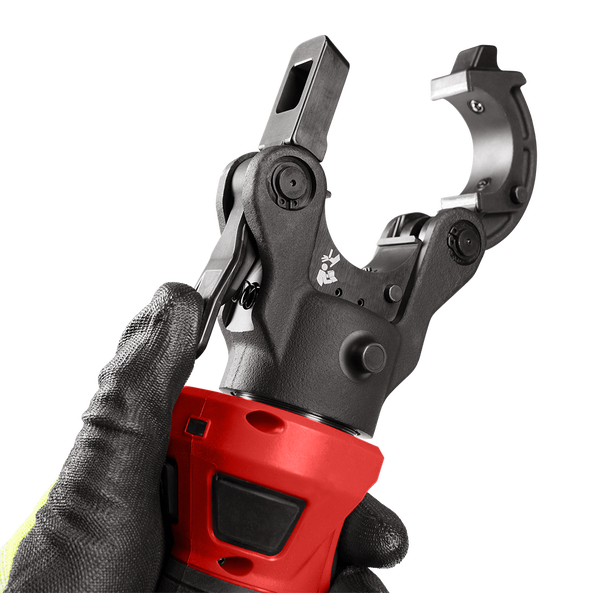

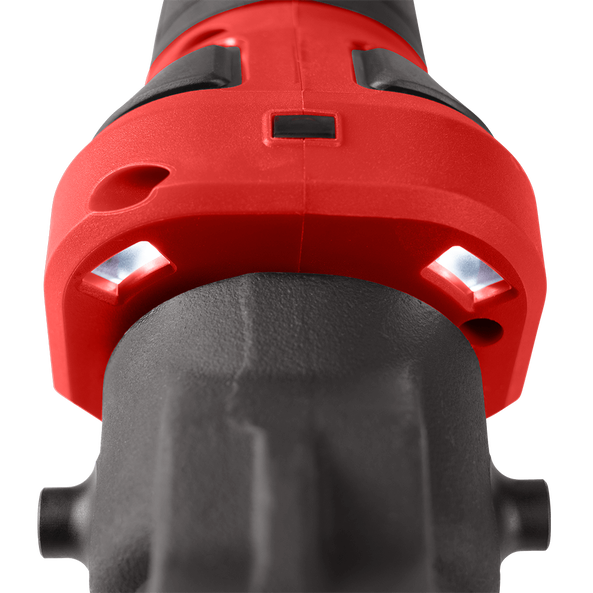

The quick latching head is rotatable by 340° and has an integrated light to illuminate the crimp surface.
PFM™ (Predictive Force Monitoring): Automatically ensures optimal pressure for every crimp.
ONE-KEY™ enabled for inventory management, tracking and reporting.

Product Summary

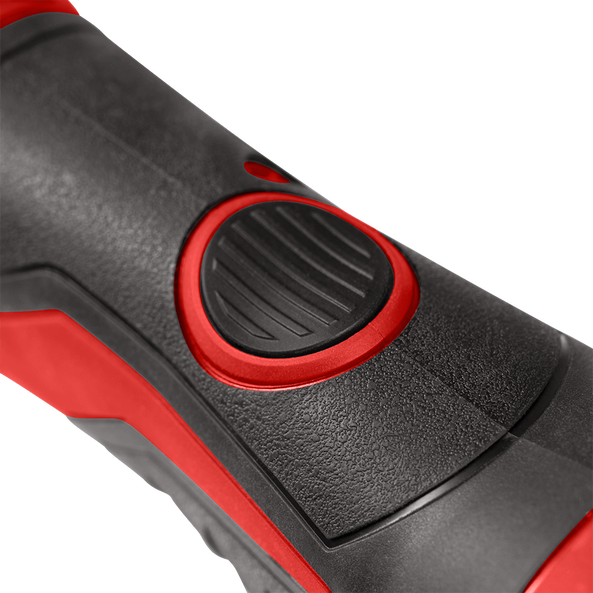

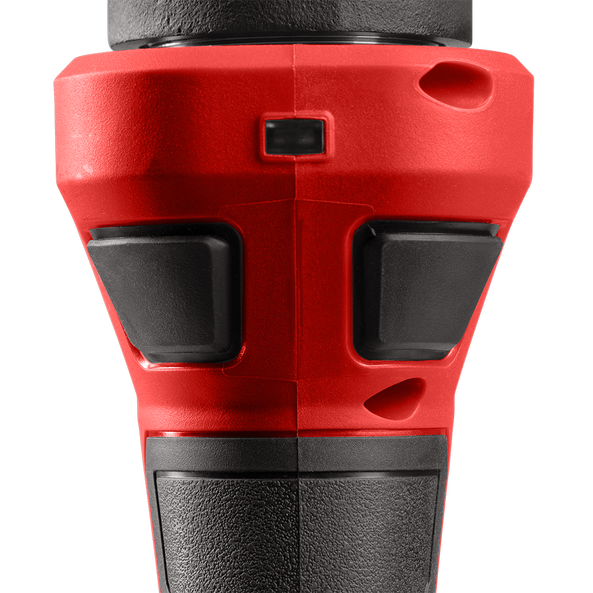

The M18™ FORCE LOGIC™ 60kN Latched Inline Utility Crimper is the easiest way to make uniform crimps. The inline design and 340° rotating head delivers unmatched access into confined spaces and maximum control in multiple orientations. An enlarged trigger and dual electronic release buttons enable both left and right-handed users to easily activate the tool while wearing gloves without changing hand position. The latched head is easily opened and then secured to ensure that only the intended wire gets crimped. Universal die reception is compatible with most common 60kN U-dies on the market. More space between the die seats enables our users to insert and remove dies while the latch is closed and to easily align on large connectors. Predictive Force Monitoring (PFM™) constantly measures output force to ensure full pressure is reached and that the output force is the same over the life of the tool delivering consistently uniform crimps. The crimper also performs a pre-crimp battery check to ensure that the battery has enough charge to complete a full crimp. Equipped with fully enclosed high-speed hydraulics, a POWERSTATE™ Brushless Motor and REDLINK™ Electronics. Integrated with our ONE KEY™ Technology, the crimper stores real-time crimp

Overview Specifications What's Included Resources Reviews

Specifications

Platform M18™ / ONE-KEY™
ONE-KEY Enabled Yes
Length 438 mm
Weight 3.4kg
Warranty - Tool 5 Years
Crimping Force 60kN
Crimp Time 5 Seconds
Predictive Force Monitoring (PFM™) Yes
Max Crimp Size (CU) 300mm2
Max Crimp Size (AL) 300mm2
Head / Jaw Rotation 340°

What's Included

M18™ FORCE LOGIC™ 60kN Latched Inline Utility Crimper
M18ONEHCCT600C
X1
Blow Mold Case
X1
Note:  (Not included) Battery and Charger
